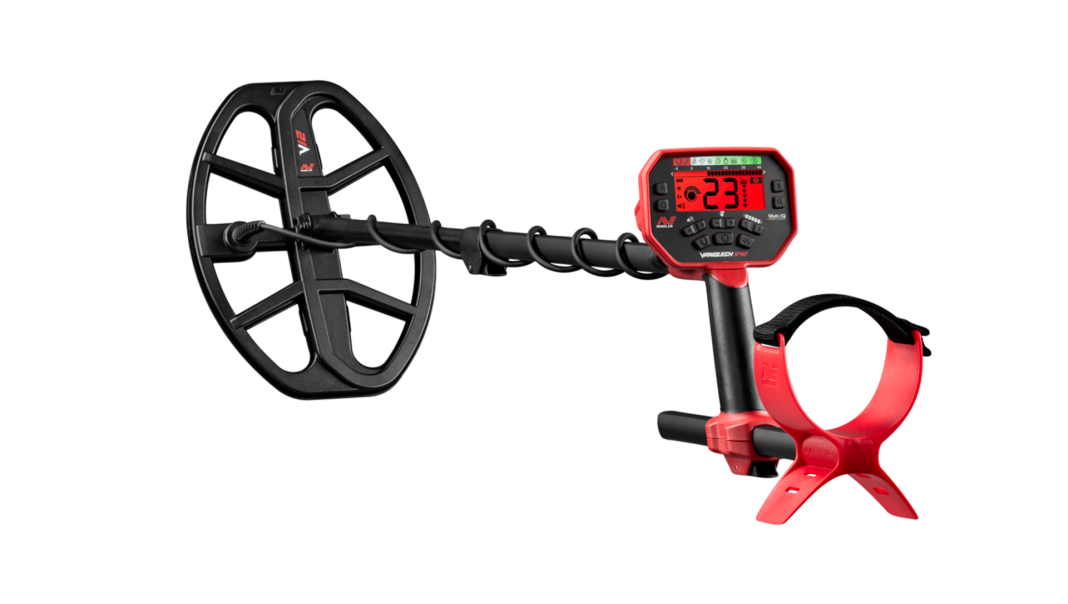

Minelab Vanquish 540

The Minelab Vanquish 540 is a versatile metal detector using Minelab’s Multi-IQ technology, allowing simultaneous operation on multiple frequencies. This provides stable detection performance across different ground types, including mineralized soil and wet sand.

The detector features automatic ground handling, making it suitable for beginners while still offering enough capability for more experienced users. Lightweight construction and simple controls support long detecting sessions without fatigue.

The Vanquish 540 is designed for coin, relic, and general-purpose detecting, offering consistent results with minimal setup requirements.

Minelab Vanquish 540 – Technical Specifications

• Search Profiles: Yes

• Search Modes: Coins, Relics, Jewelry, Custom, All Metal

• Operating Frequencies: Multi-IQ (simultaneous multi-frequency)

• Noise Cancel: Automatic (19 channels)

• Iron Bias: High (default), Low

• Bluetooth Audio: Yes

• Sensitivity: 10 levels

• Volume: 10 levels

• Target Tones: 5 tones

• Discrimination Segments: 25

• Target ID Range: −9 to 40

• Depth Indicator: 5 levels

• Length:

  • Extended: 1450 mm (57″)

  • Collapsed: 760 mm (30″)

• Weight (with batteries): 1.3 kg (2.9 lb)

• Standard Search Coil: V12 Double-D, 12″ × 9″ (30 × 23 cm)

• Audio Output:

  • Built-in speaker

  • 3.5 mm (1/8″) headphone jack

  • Bluetooth wireless headphones (optional, not included)

• Included Headphones: Yes, wired 3.5 mm

• Waterproof Rating: Coil only, up to 1 m (3 ft)

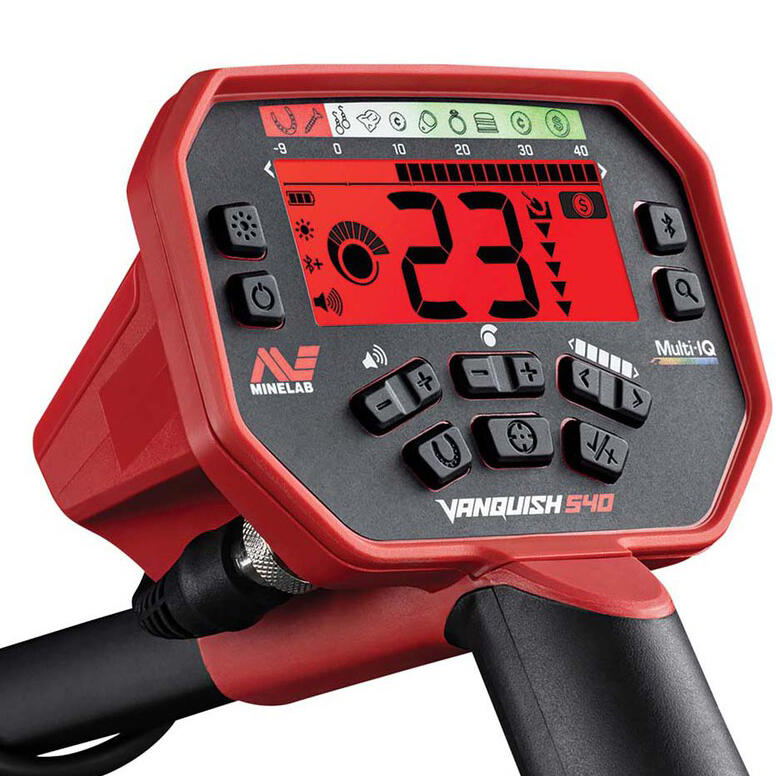

• Display: Monochrome LCD with red backlight

• Power Supply: 4 × AA replaceable alkaline batteries

• Operating Temperature: −10°C to +40°C (14°F to 104°F)

• Storage Temperature: −20°C to +70°C (−4°F to 158°F)

• Key Technologies: Multi-IQ, Bluetooth, aptX™ Low Latency
